1967 Suzuki TC250 oil pump line assembly

[wavehog33]

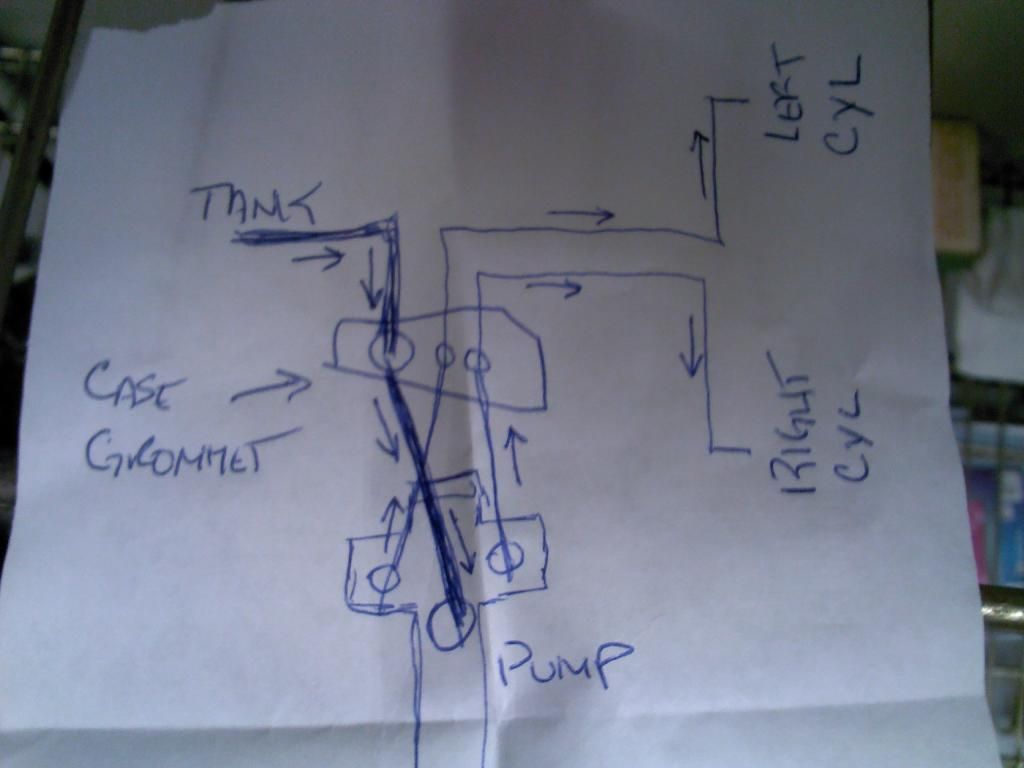

Can't figure out how the oil lines on my 67 Suzuii TC250 are attatched to the pump. Excuse my crappy drawing but you get the idea, the pump has 3 lines. The fill line (larger diameter) from tank to pump, and 2 out lines to left/right cylinder. There is also a rubber grommet between the right side clutch cover that the lines feed through. The natural way the lines lay throug the grommet and accross the engine case has the right cyl to the front of grommet, left cyl to the center and the larger diameter fill line to the left and then bending off towards rear of bike to the pump. The pump has the fill (in) line in the center and the 2 out lines the the left and right. How do I run the larger fill line to center pump banjo and the left cylinder out line without crossing the lines in the cover??? Just doesnt make sense?? Anyone have a pic of the theirs?? Fairly certain the T20 is the same setup.

[jabcb]

There is a surprisingly good explanation of the oil pump in the T20 service manual.
http://www.oldjapanesebikes.com/mraxl_G ... index.html

[wavehog33]

Thanks Bob. I read that and it is helpful for sure. The pics show soft, clear lines where mine are the stiffer plastic type. Sure looks like they cross though in the pictures. Just a crazy design if this is the case.
